Factory-direct FRP profile supply

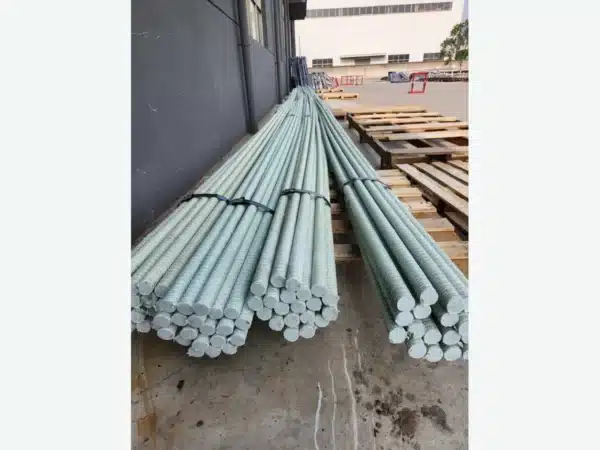

Glass fiber reinforced polymer rebar organized by diameter and catalogue weight for concrete reinforcement projects requiring corrosion and conductivity review.
Technical reference
Diameter and catalogue weight references only. Structural design, development length, testing and local-code acceptance must be confirmed by the project team.
| Diameter (mm) | GFRP kg/m |
|---|---|
| 4 | 0.025 |
| 6 | 0.055 |
| 8 | 0.098 |
| 10 | 0.155 |
| 12 | 0.220 |
| 16 | 0.392 |
| 18 | 0.500 |
| 20 | 0.612 |
| Diameter (mm) | GFRP kg/m |
|---|---|
| 22 | 0.750 |
| 26 | 1.030 |
| 28 | 1.200 |
| 30 | 1.380 |
| 32 | 1.570 |
| 36 | 1.980 |
| 38 | 2.210 |
| 40 | 2.450 |
Source: current Haikuo product manual or current product-material file. Initial system data only; final dimensions, material, performance and availability must be confirmed in the quotation and approved specification.
What to confirm
Send the closest section, critical dimensions, wall thickness and finished length.
Name water, chemicals, UV, temperature, insulation or other service conditions.
Confirm cutting, holes, notches, connection interfaces, labels and packing needs.
State sample need, first quantity, repeat demand and destination country.
Application routes
Supply control
Profile, material, finished dimensions, processing, identification and packing should be confirmed before repeat supply.
Drawing, dimensions, environment and quantity.
Existing mould, custom review or sample path.
Dimensions, appearance, processing and labels.
Packing length, documents and destination.
Project inquiry
We will identify the next product, material and supply questions before quotation.
